1250 Tubular stranding machine for local system 7-core twisted strand, copper wire, copper

I'm Online Chat Now

1250 Tubular stranding machine for local system 7-core twisted strand, copper wire, copper

China 1250 Tubular stranding machine for local system 7-core twisted strand, copper wire, copper supplier

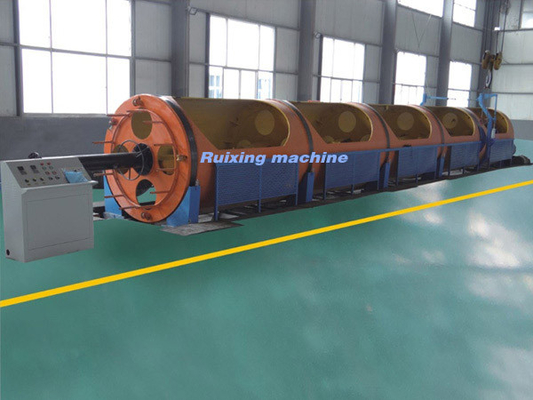

Large Image :  1250 Tubular stranding machine for local system 7-core twisted strand, copper wire, copper

Product Details:

Place of Origin: China
Brand Name: RX

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Usage: Stranding

Tubular stranding machine

Usage

This equipment is used for twisting copper strand, aluminum strand, steel strand, steel-cored aluminum strand and wire rope. After coiling, it can twist insulation wire and some control wire.

Main Character

1. The machine can work steadily with the whole holder, and the protect cover adopts high grade seamless steel tube, so the structure is also steady with lower noises.

2.   The timing power can be manipulated easily to adjust the speed .The protect cover has the right and reverse direction circumrotate.

3.   The main machine and the haul-off unit adopt shift gears case, so the working intensity is lower and the pitch is exact.

4.   Equipped with automatic parking equipment -the safeguard, it means the machine will stop when the thread runs out or the door is open.

Configuration

Rear-positioned pay-off, mainframe, tape lapper, haul-off unit, take-up and electrical system.



Technical parameter

Specification

200/1 6

400/1 6

400/1 12

500/1 6

630/1 6




Dia. of inlet (mm)

copper

0.7-2.5

1.0-3.0

1.5-4.0

1.8-5.0



Aluminium

1.0-3.0

1.5-3.5

1.8-4.0

2.0-5.0



steel

1.0-2.0

1.0-2.5

1.5-3.0

1.8-4.0



mixed

4

5

5

5



Production dia. mm

12

15

25

15



Stranding cage speed

1000

600

500

500

350



Stranding pitch mm

4.1-74.7

26-238

49-450



Diameter of wheel haul-off(mm)

318

800

1000

1250




Size of take-up reel

630

1250

1600

1800
