Usage: | Cabling |
---|

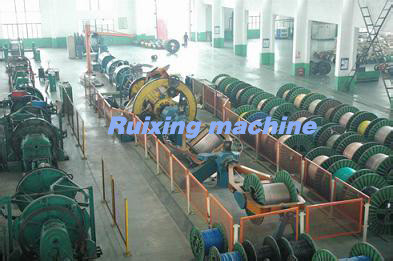

Cabling machine
Usage
The machine is used for cabling the multi-core (3 to 7) plastic cables and XLPE cables. Φ1000/1+6 and Φ1250/1+6 can be used for cabling telephone cables, control cables and mineral-use cables.
Main Character
1. This kide of machine has a wide range of products to suit customer's requirement.
2. The machine can strand cables with back-twist or without back- twist. The method of retreat-spiralling: retreat-spiralling circle , planet retreat-spiralling and sprocket retreat-spiralling.
3. For the sector cables, the pre-spiraling is done by hand or motors in or out of running.
Configuration
Pay-off strand, stranding cartage, compact die strand, taping head for plastic tape, armoring device for steel tape, counter meter, draught device, take up and traverse device, mechanical transmission system and electrical control system.
Technical parameter
Specification |
CL1000/1+1+3 |
CL1250/1+1+3 |
CL1600/2+3 |
CL2000/2+3 |
CL1000/1+6 |
CL1250/1+6 |
|||
Dia. of single wire(mm) |
5-20 |
5-25 |
10-35 |
15-45 |
Diameter of cable forming |
80 |
100 |
120 |
|
Cable forming pitch(mm) |
4.0-20.7 |
4.1-12.1 |
3.4-8.1 |
|
Cable forming pitch(mm) |
255-6850 |
227-9250 |
338-6585 |
403-7650 |
Speed of taping head(rpm) |
136-303 |
|||
Taping pitch(mm) |
15.5-272 |
|||
Armor speed (r/min) |
136-303 |
|||
Armor pitch (mm) |
15.5-272 |
|||
Diameter of wheel haul-off(mm) |
1800 |
2000 |
2500 |
|
Production speed(m/min) |
4.7-37 |
3.2-26.6 |
||
Size of take-up reel(mm) |
PN2000 |
PN2500 |
PN3150 |
