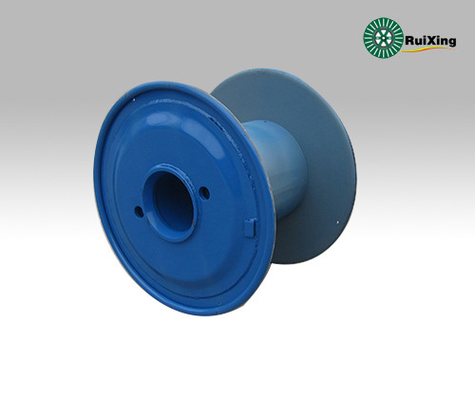

Double layer high speed cable bobbin cable reel drum spool for high speed twisting machine

Technical parameter for reference

In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing. The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high-speed drawing-wire machine and wire stranding machine.

Serial Number	Specification Model	Lateral Plate Diameter D1	Major Diameter D2	Axle Hole Diameter D4	Carrying Hole Diameter D5	Center Distance E of Axle Hole and Carrying Hole	External Width L1	Internal Width L2
1	400	400	224/250 280	125/127	28	100	265 300	224 250
2	500	500	280/315 355	125/127	28	100	300 375	250 315
3	560	560	315/355 400	125/127	28	100	355 425	280 355
4	630	630	355/400 450	125/127	28	100	375 475	315 400
5	710	710	400/450 500	250	40	170	425 530	355 450
6	800	800	450/500 560	250	40	170	475 600	400 500
7	1000	1000	560/630 710	250	50	250	750	630
8	1250	1250	710/800 900	250	50	250	950	800

We can produce spools accordance with customer's sample and drawing
