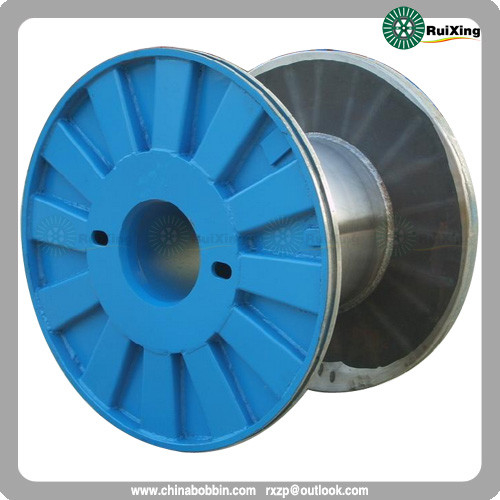

Enhanced metal flange process bobbin
PN630-1250
Usage
Intended in wire drawing machine, steel rod breakdown machines. For steel wire, steel rope, copper, welding wire etc.
Main Character
All mechanical precision forming and though dynamic balance tests, high rigidity, high precision, steady in high-speed operations. Dynamically balanced for speed from 25m/s to 50m/s.
|
Specification Type |
d1 | d2 | d3 | d4 | e | L1 | L2 | t4 | α | Vdm³ |
| 315 | 315 | 200 |
60 / 125 (127) |
16 | 200 | 236 | 200 | 20 | 45° | 9.3 |
| 355 | 355 | 200/224 | 265 | 224 | 15.1/13.3 | |||||
| 400 | 400 | 224/280 | 28 | 300 | 250 | 21.6/16.0 | ||||
| 450 | 450 | 250/315 | 335 | 280 | 30.8/22.7 | |||||
| 500 | 500 | 280/355 | 375 | 315 | 42.5/30.7 | |||||
| 560 | 560 | 315/400 | 425 | 355 | 59.8/42.8 | |||||
| 630 | 630 | 355/375 | 40 | 260 | 500 | 400 | 86.2/61.6 | |||
| 760 | 760 | 355/400 |
125 / 200 |
320 | 360 | 280 | 40 | 121.6/89.8 | ||
| 800 | 800 | 400/450 | 600 | 500 | 172/128 | |||||
| 1000 | 1000 | 500/560 | 50 | 450 | 750 | 630 | 340 | |||
| 1250 | 1250 | 710/800 | 950 | 800 | 665 |
