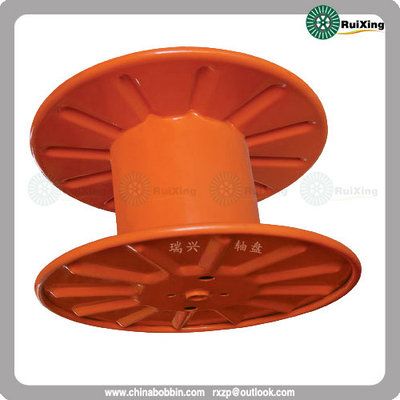

Stamped steel plate machine spool
Usage
For cable, steel wire, steel rope, copper, aluminum and welding wire, process, one-way or shipping bobbin.
Main Character
Forming by steel plate stamping and wielding ,high rigidity, high precision, steady in high-speed operations. Dimension either according to customer’s specifications or GB4004-83, JB/T8997.4-1999 and DIN46397.
|
Specification Type |
d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | t4 | α | Vdm³ |
| 315 | 315 | 160 | 60(71) | 36 | 8-16 | 40(71) | 236 | 200 | 10-15 | 60° | 9.2 |
| 355 | 355 | 140/180 |
90 (112) |
56 | 16-28 |
71 (112) |
265/215 | 224/180 | 15-20 | 18.7/13.2 | |
| 400 | 400 | 160/200 | 300/236 | 250/200 | 26.3/18.8 | ||||||
| 450 | 450 | 180/224 | 335/265 | 280/224 | 37.4/26.8 | ||||||
| 500 | 500 | 200/250 |
71 (140) |
375/300 | 315/250 | 51.9/36.8 | |||||
| 560 | 560 | 315/400 | 425/335 | 355/280 | 73.4/53.7 | ||||||
| 630 | 630 | 250/315 | 475/375 | 400/315 | 105.1/72.5 | ||||||
| 710 | 710 | 355 |
120 (160) |
80 | 28-40 | 160 | 530 | 450 | 20-40 | 133.6 | |
| 800 | 800 | 400 | 600 | 500 | 188.5 | ||||||
| 900 | 900 | 450 | 670 | 560 | 267.2 | ||||||
| 1000 | 1000 | 500 | 750 | 630 | 371.1 | ||||||
| 1120 | 1120 | 560 | 850 | 710 | 524.6 | ||||||
| 1250 | 1250 | 630 | 950 | 800 | 732.4 |
