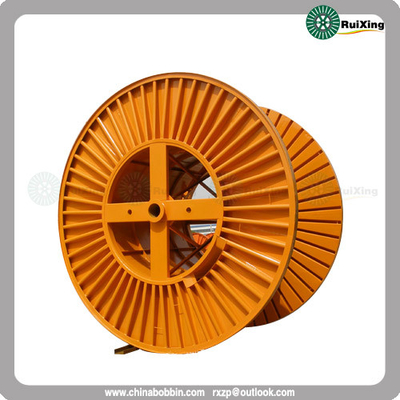

Big steel corrugated spool for cable machine Corrugated steel spool for wire stranding

I'm Online Chat Now

Big steel corrugated spool for cable machine Corrugated steel spool for wire stranding

China Big steel corrugated spool for cable machine Corrugated steel spool for wire stranding supplier

Large Image :  Big steel corrugated spool for cable machine Corrugated steel spool for wire stranding

Product Details:

Place of Origin: China
Brand Name: RX
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: 20 USD
Delivery Time: 30 days
Payment Terms: TT; L/C; Western Union
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description

Corrugated bobbin

Usage

Intended for stranding machine, cabling machine and armoring machine, etc.



Main Character

Forming by steel plate stamping and wielding, high rigidity, light weight. Dimension either according to customer’s specifications or DIN46395, GB4004-83, JB/T7600.3-94

         Specification
 Type
d1 d2 d3 d4 d5 e L1 L2 Vdm³
800 800 400 120
(160)
80 28-40 160 600 500 188.5
1000 1000 500 750 630 371.1
1120 1120 560 850 710 524.6
1250 1250 630 950 800 732.4
1400 1400 710 40-63 300 1060 900 1029.1
1600 1600 800 1180 1000 1508
1800 1800 1000 160
(200)
100 1320 1120 1970.4
2000 2000 1120 125 1500 1250 2695.4
2240 2240 1250 160
(250)
1700 1400 3799.1
2500 2500 1500 1900 1600 5026.5
2800 2800 1800 280 140 2120 1800 6503.1
3150 3150 1900 300 160 2300 2000 9915.6
