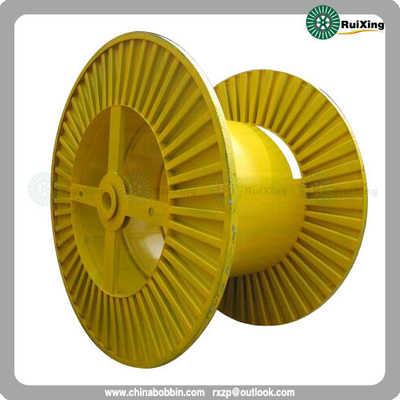

Corrugated steel spool for wire stranding machine Big steel corrugated spool

I'm Online Chat Now

Corrugated steel spool for wire stranding machine Big steel corrugated spool

China Corrugated steel spool for wire stranding machine Big steel corrugated spool supplier

Large Image :  Corrugated steel spool for wire stranding machine Big steel corrugated spool

Product Details:

Place of Origin: China
Brand Name: RX
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: 200 USD
Delivery Time: 30 days
Payment Terms: TT; L/C; Western Union
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description



Corrugated bobbin for delivery

Usage

For delivering wire, cable, telephone cable, optical fiber cable, stay cable and steel rope, especially for export.

Main Character

Forming by steel plate stamping and wielding, high rigidity, light weight. Dimension either according to customer’s specifications or GB4005-83, GB4005, JB/T8137. 3-1999



         Specification
 Type
d1 d2 d4 d5 e L1 L2 Vdm³
1000 1000 500/560 80 40 160 710 560 330.0/302.0
1120 1120 560/630 800 630 466.0/424.0
1250 1250 630/710 591.6/523.7
1400 1400 710/900 65 300 950 750 857.6/667.4
1600 1600 900/1000 1120 900 1237.0/1102.7
1800 1800 1000/1250 80(125) 1400 1120 1970.4/1475.6
2000 2000 1000/1400 125 2638.7/1795.4
2240 2240 1250/1800 3039.3/1563.7
2500 2500 4123.4/2647.7
2800 2800 1800 160 500 1700 1400 5058
3150 3150 2000 2000 1600 7442
3550 3550 2360 8837
4000 4000 2800 200 80 1000 2240 1800 11535
4500 4500 3000 2500 2000 17671
