Cabling machine for laying up the mineral-use cables, control cables, telephone cables

I'm Online Chat Now

Cabling machine for laying up the mineral-use cables, control cables, telephone cables

China Cabling machine for laying up the mineral-use cables, control cables, telephone cables supplier

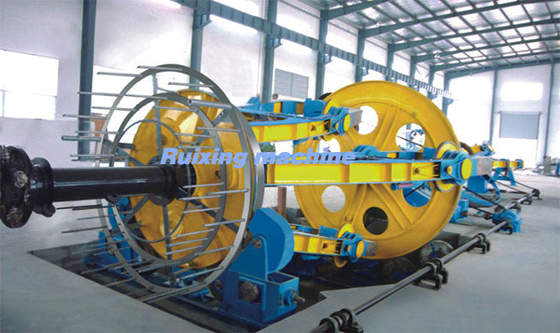

Large Image :  Cabling machine for laying up the mineral-use cables, control cables, telephone cables

Product Details:

Place of Origin: China
Brand Name: RX

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Usage: Cabling

Cabling machine



Usage

The machine is used for cabling the multi-core (3 to 7) plastic cables and XLPE cables. Φ1000/1+6 and Φ1250/1+6 can be used for cabling telephone cables, control cables and mineral-use cables.



Main Character

1.   This kide of machine has a wide range of products to suit customer's requirement.

2.   The machine can strand cables with back-twist or without back- twist. The method of retreat-spiralling: retreat-spiralling circle , planet retreat-spiralling and sprocket retreat-spiralling.

3.   For the sector cables, the pre-spiraling is done by hand or motors in or out of running.

Configuration

Pay-off strand, stranding cartage, compact die strand, taping head for plastic tape, armoring device for steel tape, counter meter, draught device, take up and traverse device, mechanical transmission system and electrical control system.

Technical parameter

Specification

CL1000/1+1+3

CL1250/1+1+3

CL1600/2+3

CL2000/2+3

CL1000/1+6

CL1250/1+6

Dia. of single wire(mm)

5-20

5-25

10-35

15-45

Diameter of cable forming

80

100

120

Cable forming pitch(mm)

4.0-20.7

4.1-12.1

3.4-8.1

Cable forming pitch(mm)

255-6850

227-9250

338-6585

403-7650

Speed of taping head(rpm)

136-303

Taping pitch(mm)

15.5-272

Armor speed (r/min)

136-303

Armor pitch (mm)

15.5-272

Diameter of wheel haul-off(mm)

1800

2000

2500

Production speed(m/min)

4.7-37

3.2-26.6

Size of take-up reel(mm)

PN2000

PN2500

PN3150
