| Color: | Blue, Green, Red | Using: | Packing, Processing, Dispatch, Bunching |
|---|

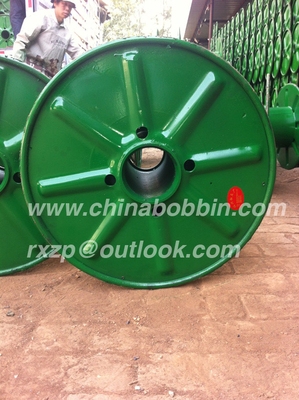

1. Corrugated Steel Spool Series:
PN1000mm, PN1250mm, PN1400mm, PN1600mm, PN1800mm, PN2000mm, PN2240mm, PN2400mm, PN2800mm, PND3150mm for large cable, welding wire, process, one-way or shipping spool, PVC tube , PVC pipe rolling.
2. Double Layer High Speed Spool Series:
PND500mm, PND630mm, PND800mm, PND1000mm, PND1250mm for wire and cable stranding machine, twist bunching machine, taping machine, and wire cable making machinery.
3. Flat High Speed Spool Series:
PND300mm, PND400mm, PND500mm, PND630mm, PND800mm, PND1000mm, PND1250mm for copper aluminum wire drawing machine, stranding machines, bunching machines, annealing machine, enameling machine, tinning machine.
More Products:
Double Layer High Speed Bobbin
Flat High Speed Bobbin
Enhanced metal flange process bobbin
Stamped steel plate machine spool
Corrugated bobbin
Reinforced corrugated bobbin
Corrugated bobbin for delivery
Enhanced Type machine bobbin
Other reels and spools
Ruixing Electrical Machinery Co., Ltd.
ADD: Chengdong Industrial Zone, Hejian, Hebei, China
TEL: +86-317-3600828 3866066
Fax: +86-317-3600828
E-mail: jackyreels@hotmail.com Melody@chinabobbin.com
WEBSITE: http://www.chinabobbin.com
Technical parameter for reference
Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
1 | 315 | 315 | 120 | 33.5 | 16 | 86 | 238 | 200 |
2 | 400 | 400 | 160/200 | 56 | 16 | 71-112 | 300 | 250 |
3 | 440 | 440 | 220 | 80 | 16-28 | 180 | 316 | 292 |
4 | 450 | 450 | 180/224 | 56 | 16-28 | 71-112 | 335 | 280 |
5 | 500 | 500 | 250 | 56 | 16-28 | 142 | 335 | 315 |
6 | 560 | 560 | 224/280 | 56 | 16-28 | 71-112 | 425 | 355 |
7 | 600 | 600 | 250/300 | 56/60 | 16-28 | 71-112 | 340/3 85 | 300/3 50 |
8 | 630 | 630 | 335 | 80 | 16-32 | 140 | 495 | 450 |
9 | 710 | 710 | 355/400 | 80 | 28-40 | 71-112 | 530 | 450 |
10 | 760 | 760 | 355 | 32.5/54 | 21-35 | 64-115 95-126.5 | 345 315 | 295 280 |
11 | 762 | 762 | 355/400 | 60 | 25-40 | 135 | 360 | 280 |
12 | 787 | 787 | 450 | 127 | 25.4 | 120 | 560 | 485 |
13 | 800 | 800 | 450 | 200 | 28-40 | 135 | 600 | 500 |
14 | 900 | 900 | 380 | 80 | 28-40 | 400 | 764 | 720 |
15 | 1000 | 1000 | 500 | 200 | 28-40 | 320 | 780 | 660 |
