Empty Metal flange process drum metal flange process reels metal flange process spool

I'm Online Chat Now

Empty Metal flange process drum metal flange process reels metal flange process spool

China Empty Metal flange process drum metal flange process reels metal flange process spool supplier

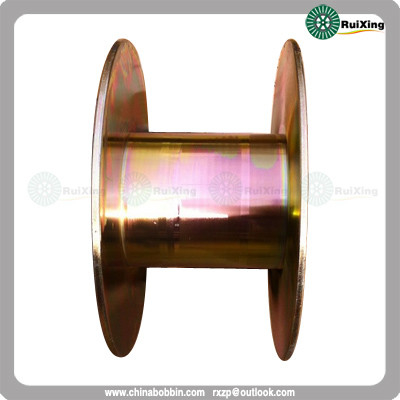

Large Image :  Empty Metal flange process drum metal flange process reels metal flange process spool

Product Details:

Place of Origin: China
Brand Name: RX
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: 60 USD
Delivery Time: 30 days
Payment Terms: TT; L/C; Western Union
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description

Flat High Speed Bobbin

Usage

Intended in wire drawing machine, high-speed copper and aluminum rod breakdown machines.



Main Character

Dimension either according to customer's specifications or GB4004-83, JB/T8997.4-1999, DIN46395/DIN46397 standard. Dynamically balanced for speed from 25m/s to 50m/s. The reels are rigidity good, dynamic balance good, concentric high.



         Specification
 Type
d1 d2 d4 d5 e L1 L2 t4 α Vdm³
315 100 56 125 (127) - - 80 60 8 45° 0.32
355 125 71 95 75 10 0.62
400 160 90 118 95 12.5 1.31
450 200 80/100 150 118 16 2.26
500 250 140/160 190 160 20 5.39/4.64
560 315 180/200 16 100 236 200   10.5/9.3
630 355 200/224 265 224   15.1/13.3
760 400 224/280 28 300 250   21.6/16.0
800 450 250/315   335 280   30.8/22.7
1000 500 280/355   375 315   42.5/30.7
1250 560 315/400   425 355   59.8/42.8
630 630 355/450   475 400   86.2/61.6
710 710 400/500 250 40 170 530 450 40 121.6/89.8
800 800 450/560 600 500 172/128
1000 1000 560/630 750 630 340
1250 1250 710/800 950 800 665
