Metal cable puller wire drum bobbin custom mild steel wire spool cable steel wire drum

I'm Online Chat Now

Metal cable puller wire drum bobbin custom mild steel wire spool cable steel wire drum

China Metal cable puller wire drum bobbin custom mild steel wire spool cable steel wire drum supplier

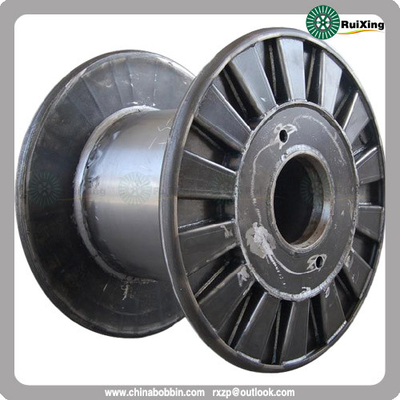

Large Image :  Metal cable puller wire drum bobbin custom mild steel wire spool cable steel wire drum

Product Details:

Place of Origin: China
Brand Name: RX
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: 60 USD
Delivery Time: 30 days
Payment Terms: TT; L/C; Western Union
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description

Enhanced metal flange process bobbin

PN630-1250

Usage

Intended in wire drawing machine, steel rod breakdown machines. For steel wire, steel rope, copper, welding wire etc.



Main Character

All mechanical precision forming and though dynamic balance tests, high rigidity,  high precision, steady in high-speed operations. Dynamically balanced for speed from 25m/s to 50m/s.



         Specification
 Type
d1 d2 d3 d4 e L1 L2 t4 α Vdm³
315 315 200 60      /       125
(127)
16 200 236 200 20 45° 9.3
355 355 200/224 265 224 15.1/13.3
400 400 224/280 28 300 250 21.6/16.0
450 450 250/315 335 280 30.8/22.7
500 500 280/355 375 315 42.5/30.7
560 560 315/400 425 355 59.8/42.8
630 630 355/375 40 260 500 400 86.2/61.6
760 760 355/400 125
 /
200
320 360 280 40 121.6/89.8
800 800 400/450 600 500 172/128
1000 1000 500/560 50 450 750 630 340
1250 1250 710/800 950 800 665
