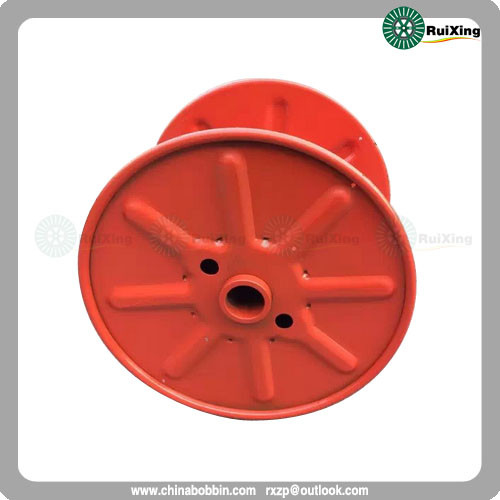

Reel with single wall rimmed flange in pressed steel for PP wire

I'm Online Chat Now

Reel with single wall rimmed flange in pressed steel for PP wire

China Reel with single wall rimmed flange in pressed steel for PP wire supplier

Large Image :  Reel with single wall rimmed flange in pressed steel for PP wire

Product Details:

Place of Origin: China
Brand Name: RX
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: 20 USD
Delivery Time: 30 days
Payment Terms: TT; L/C; Western Union
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description

Stamped steel plate machine spool

Usage

For cable, steel wire, steel rope, copper, aluminum and welding wire, process, one-way or shipping bobbin.



Main Character

Forming by steel plate stamping and wielding ,high rigidity, high precision, steady in high-speed operations. Dimension either according to customer’s specifications or GB4004-83, JB/T8997.4-1999 and DIN46397.

         Specification
 Type
d1 d2 d3 d4 d5 e L1 L2 t4 α Vdm³
315 315 160 60(71) 36 8-16 40(71) 236 200 10-15 60° 9.2
355 355 140/180 90
(112)
56 16-28 71
(112)
265/215 224/180 15-20 18.7/13.2
400 400 160/200 300/236 250/200 26.3/18.8
450 450 180/224 335/265 280/224 37.4/26.8
500 500 200/250 71
(140)
375/300 315/250 51.9/36.8
560 560 315/400 425/335 355/280 73.4/53.7
630 630 250/315 475/375 400/315 105.1/72.5
710 710 355 120
(160)
80 28-40 160 530 450 20-40 133.6
800 800 400 600 500 188.5
900 900 450 670 560 267.2
1000 1000 500 750 630 371.1
1120 1120 560 850 710 524.6
1250 1250 630 950 800 732.4
