Drum twister laying-up machine for power cables and telephone cable

China Drum twister laying-up machine for power cables and telephone cable supplier

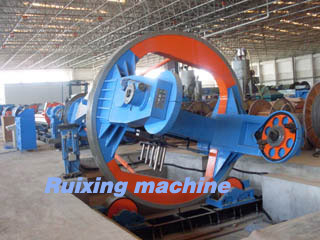

Large Image :  Drum twister laying-up machine for power cables and telephone cable

Product Details:

Place of Origin: China
Brand Name: RX

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Usage: Cabling

Drum twister laying-up machine



Usage

The machine is used for stranding power cables with large cross-section and great length, as well as split conductors and telephone cable. It can strand pre-spire or non-spire cores for stranded cable. It can also be used for steel-armoring or Cu-screening cable.



Main Character

1. It adopts new type drum twisting structure, and it is highly efficient and convenient .

2.   The machine includes tape lapper, pedrail driven and rotary take-up which are linked tighter to keep cable pitch exact. The pay-off adopts single motor gyration which can keep rotating with the rotary take-up or remains working by itself.

3.   The pay-off is passive style, and the tensile force is adjustable.

4.   The take-up adopts up-wheel structure to strengthen the rigid, steady and reliability.

5.   It is equipped with multi-safeguards which can be manipulated easily and reliably.



Configuration

Rotary pay-off, guiding unit, assembling plate, fill stand, die holder, rotary caterpillar, steel armor and electrical system.



Technical parameter

Specification

JPD-2500

JPD-3150

JPD-3500

JPD-4000

Take-up bobbin

Φ2500

Φ3150

Φ3500

Φ4000

Max dia. of output (mm)

120

130

150

Cable pitch (mm)

111-9298

Strander speed (rpm)

30

21

20

18

Output speed (m/min)

50

42

31

28
