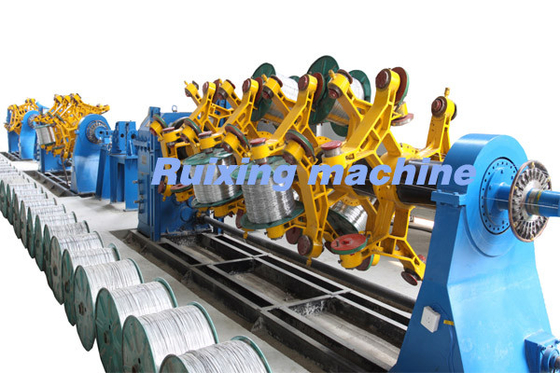

Fork Strander
Usage
The machine is used for manufacturing wire without back-twist such as copper strand, aluminum strand, ACSR as well as stranding and compacting sector conductor and round conductor.
Main Character
1. The hollow shaft integrated processing, compact structure, good rigidity, high speed.
2. Wire reel is pressed on with clamping thimble plate hand wheel, which has machine locked safeguard.
3. The stranding cages can be linked tighter through transmission shaft, and they can also be chosen frequency synchronization to drive.
Configuration
Center pay-off strand, stranding cartage, compact die stand, double draught wheels, take up and traverse device, mechanical transmission system and electrical control system.
Technical parameter
|
Specification |
400/12+18+24 |
500/12+18+24 |
|
|
Dia. of single wire(mm) |
Copper |
1.5-5.0 |
|
|
Aluminum |
2.1-5.0 |
||
|
Od of stranding(mm) |
45 |
||
|
Frame rotation speed(r/min) |
48-168 |
||
|
Stranding pitch(mm) |
40-750 |
||
|
Dia. Of capstan wheel(mm) |
1600 |
||
|
Production speed(m/min) |
6.1-50.2 |
||
|
Size of take-up reel(mm) |
PN2000 |
||
