Steel-armoring Cu-screening cage type stranding machine

I'm Online Chat Now

Steel-armoring Cu-screening cage type stranding machine

China Steel-armoring Cu-screening cage type stranding machine supplier

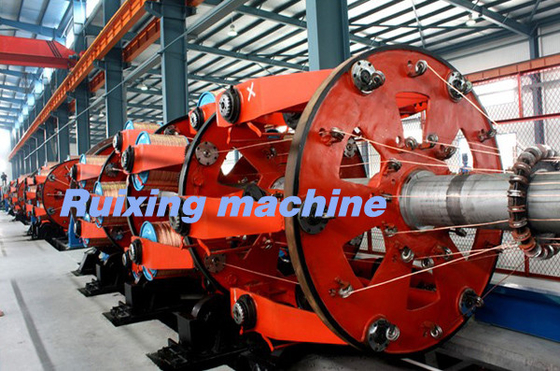

Large Image :  Steel-armoring Cu-screening cage type stranding machine

Product Details:

Place of Origin: China
Brand Name: RX

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Usage: Stranding

Cage Strander



Usage

The machine is used for stranding Cu, Al wire, ACSR and insulated wires with back-twist. It also can steel-armoring or Cu-screening cables.



Main Character

1. There are 2 method for back-twist: back-twist circle and planetary mechanism.

2.   The non-axle thimble twisting cage is equipped with mechanism friction tension control.

3.   The transmission shafts link all the machine parts together to keep stable stranding pitch, which can also be chosen frequency synchronization to control the machine.

4.          The machine is widely used, and manipulated conveniently with low-noise.



Configuration

Pay-off, mainframes of 6-reel, 12-reel, 18-reel, 24-reel and 30-reel, die holder, tape lapper, armor unit, haul-off, take-off, driven system and electrical system.



Technical parameter

Specification

400/12+18+24

500/6+12+18

500/12+18+24

630/12+18+24

Dia. of single wire (mm)

copper

1.5-5.0

aluminum

1.8-5.0

steel

1.2-3.0

Production dia. (mm)

45

35

45

Stranding cage speed (rpm)

35-88

24-60

Stranding pitch (mm)

53.4-1057

78-1541

Diameter of wheel haul-off (mm)

1800

2000

Production speed (m/min)

4.7-37

Size of take-up reel (mm)

PN2000

PN2500
