Plastic extruders for extruding PVC, PE or XLPE insulating layer onto wires and cables

I'm Online Chat Now

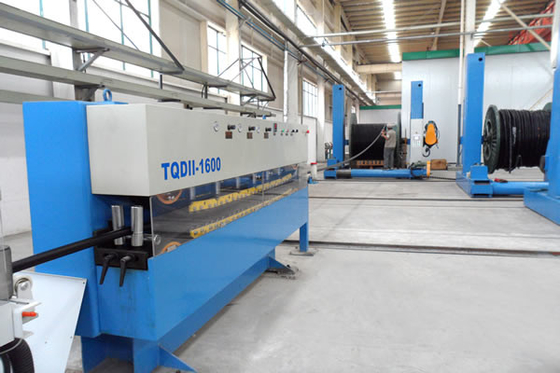

Plastic extruders for extruding PVC, PE or XLPE insulating layer onto wires and cables

China Plastic extruders for extruding PVC, PE or XLPE insulating layer onto wires and cables supplier

Large Image :  Plastic extruders for extruding PVC, PE or XLPE insulating layer onto wires and cables

Product Details:

Place of Origin: China
Brand Name: RX

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Usage: Coating

Plastic extruder

Usage

This series of plastic extruders are used for extruding PVC, PE or XLPE insulating layer and protective jacket onto wires and cables.



Main Character

1. The product line is collocated reasonably, so it is well up to the standard of the technics.

2.   It selects the solid gear speed-down motor, so it can be used for a long time with low-noise.

3.   The mainframe canister is heated by aluminum casting and cooled by blower, and the screw is cooled by water-center. All of this is monitoring by complex temperature instrument, so it is convenient to adjust.



Configuration

Pay-off, tensioning unit, extruder, cool-water trough, haul-off, take-up and electrical system.



Technical parameter

Specification

SJ45

SJ65

SJ90

SJ120

SJ150

Rate of screw long dia.

25:1

Dia. Of extruder (mm)



15

35

60

100

Size of take-up(mm)

630

1600

2000

2500

3150

Heat voltage (kw)

7.5

16

25

37

64

Extruding speed (kg/h)

34

120

240

400

680
